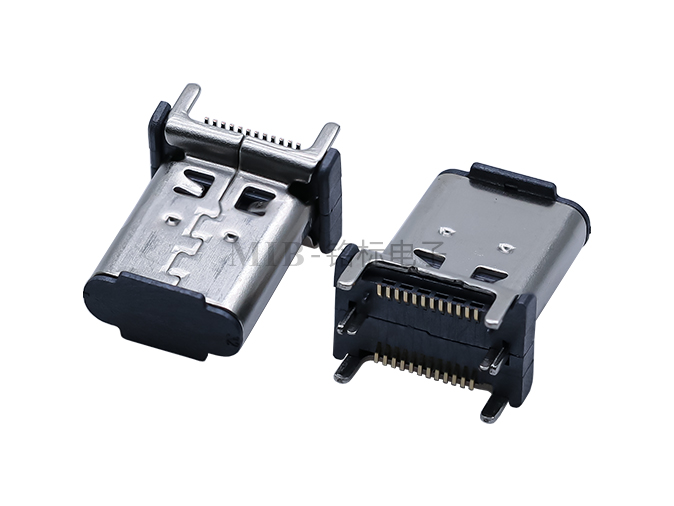

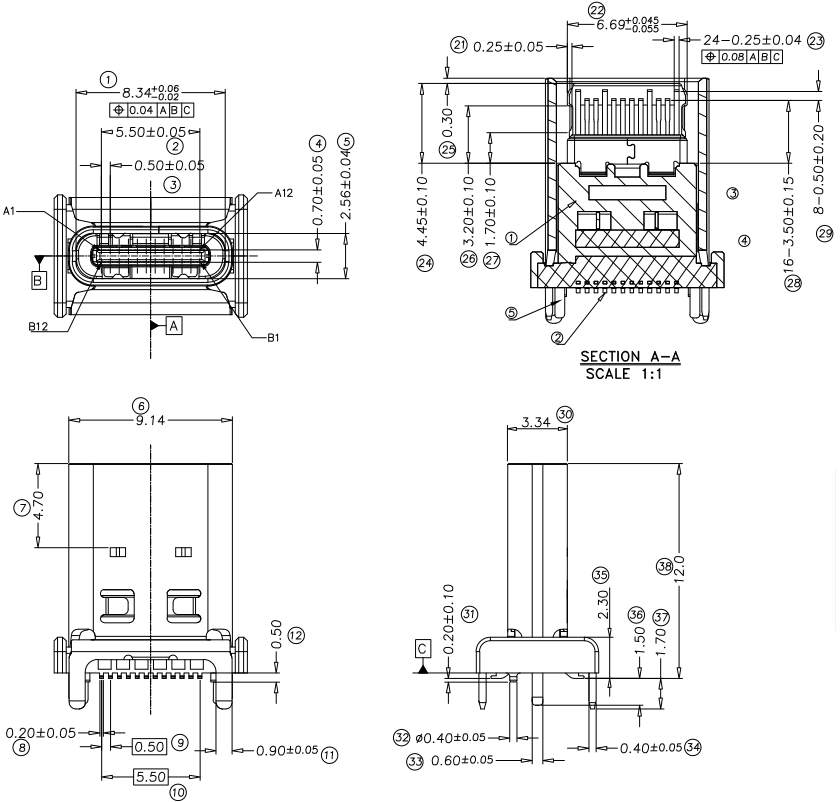

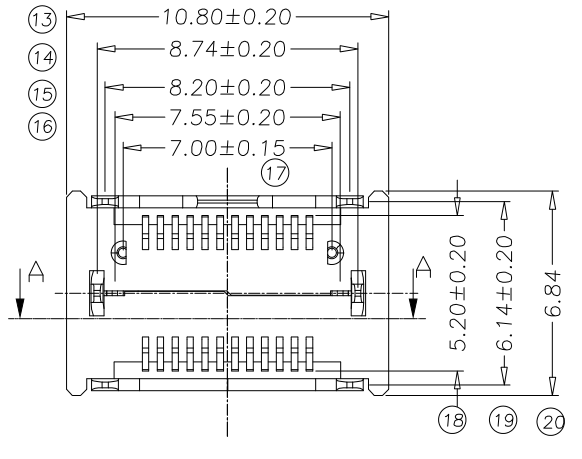

SPECIFICATIONS
NOTE:
1.MATERIAL SPECIF ICATION:
1-1.HOUSING:HIGH TEMPERATURE RESISTANT PLASTIC,
WITH 30%GLASS FILLED,UL94 V-0 BLACK.
1-2.CONTACTS:COPPER ALLOY
1-3.EMI SPRING:STAINLESS STEEL
1-4.FRONT SHELL:STAINLESS STEEL
1-5.MIDDLE BLADE:STAINLESS STEEL
2.PLATING SPECIFICATION:
2-1.CONTACTS:
Ni 30u″ MIN.UNDER PLATED OVER ALL.
1-30u″ Au PLATED ON THE FUNCTIONAL AREA OF CONTACT.
TIN PLATED ON SOLDER AREA.
2-2.EMI SPRING:
CLEANING?NLY
2-3.FRONT SHELL:
Ni 50u″ MIN.UNDER PLATED OVER ALL.
2-4.MIDDLE BLADE:
Ni 50u″ MIN.UNDER PLATED OVER ALL.
3.MECHANICAL PERFORMANCE,
3-1.INSERTION FORCE:0.5~2.0kgf.
3-2.REMOVAL FORCE:0.8kgf~2.0kgf.
3-3.DURABILITY:10000 CYCLES.
4.ELECTRICAL PERFORMANCE,
4-1,CURRENT RATING:5.0A
VOLTAGE RATING:5.0V
4-2.
LLCR:
VBUS & GND PINS AND OTHER PINS:40mΩ/PIN MAX.SHIELD:50m Ω/MAX.
LLCR MAX.CHANGE OF ALL PINS:10mΩ.
4-3.INSULATION RESISTANCE:100MΩ MIN
4-4.DIELECTRIC WITHSTAND VOLTAGE,AC 100V FOR 1 MINUTE.
5.ENVIRONMENTAL PERFORMANCE:
OPERATING TEMPERATURE:-25°C~+85°C.
6.IR REFLOW:
THE PEAK TEMPERATURE ON THE BOARD SHALL
BE MAINTAINED FOR 10 SECONDS AT 260C.
