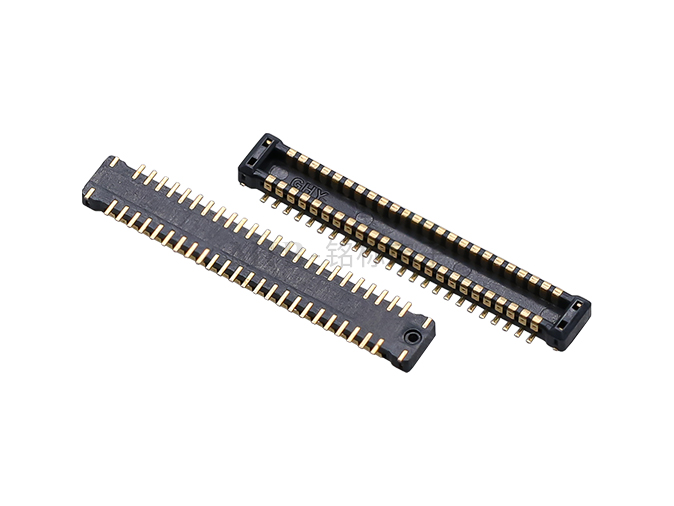

MIB-020M048 9.9*2.4*0.65mm
品牌：銘標科技
型號：MIB-020M048
規格：9.9*2.4*0.65mm
包裝：10000pcs
毛邊最大0.03mm，厚0.05mm;端子接地片共面度在0.05mm以內,正位度0.02mm以內;
* 聲明：有關于產品的規格、參數、壽命、工作溫度、手感、防水等級等數據，只代表銘標電子內部的測試結果，如需詳細測試方式，請聯系銘標業務人員。
SPECIFICATONS:
1. Plastic material: LCP UL 94V-0 BLACK;
2. 0.03mm thick, 0.05mm thick;
3. The product should not have obvious shrinkage, burning, white, rubber, terminal glue and other problems;
4. Parts must meet RoHS requirements;
5. ▼ symbol QIP control size;
6. Die number (A, B, C...... );
7. 10 KPCS / disk;
8. No geometric center position of the product;
9. The joint level of terminal ground plate within 0.05mm, positive degree within 0.02mm;
10. Fine glue inlet at the bottom;
|
Proudcts |

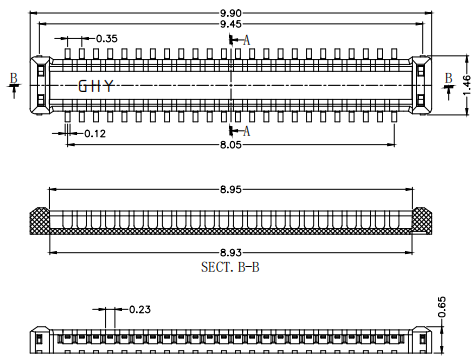

Dimensions |
Circuit Diagram |
|

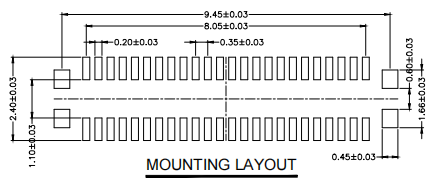

Pad Layout |
|
|
 |
|
