| ltems | Standard | |
| Operating temperature range | -40℃ to +85℃ | |
|
Electrical performance |
Rating | 50mA.,15V DC |
| Insulation resistance | 100MΩ min.100V DC | |
| Dielectric strength | 100V AC for 1 min. | |
| Contact resistance | 500mΩ max. | |
| Durability | Lifetime | N:600,000 Cycles C:600,000 Cycles |
|
Mechanical performance |
Operating force | N:180gf T:220gf C:250gf |
| Travel | 0.15±0.0mm | |

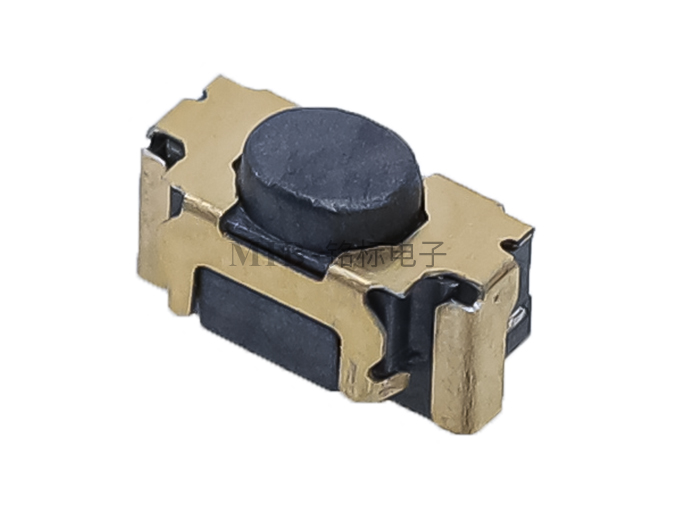

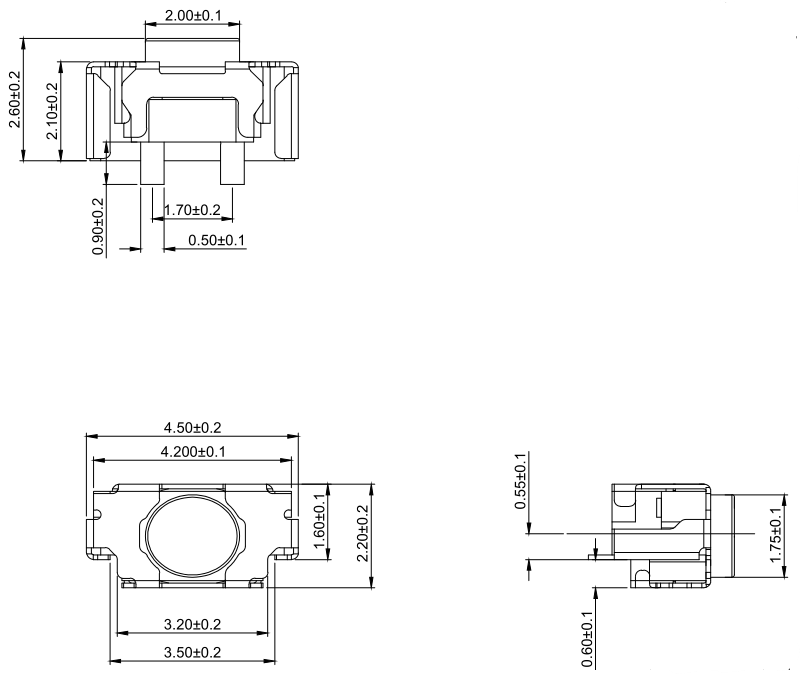

| Proudcts | Dimensions | Circuit Diagram |

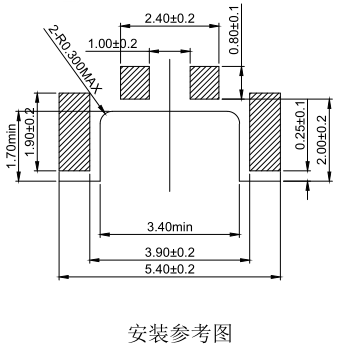

| Pad Layout | ||
 |
 |
 |
