ltems | Standard | |
Ambient Temper. Used | -40℃ to +85℃ | |
Electrical performance |
Rating | 50mA DC12V Max |
Insulation resistance | 3MΩ min.DC100V | |
Dielectric strength | AC 100V 1min. | |
Contact resistance | 100mΩ max. | |
Mechanical performance |
Operating force | 300±70gf/500±100gf |
Durability | Life | 30,000 Cycles |

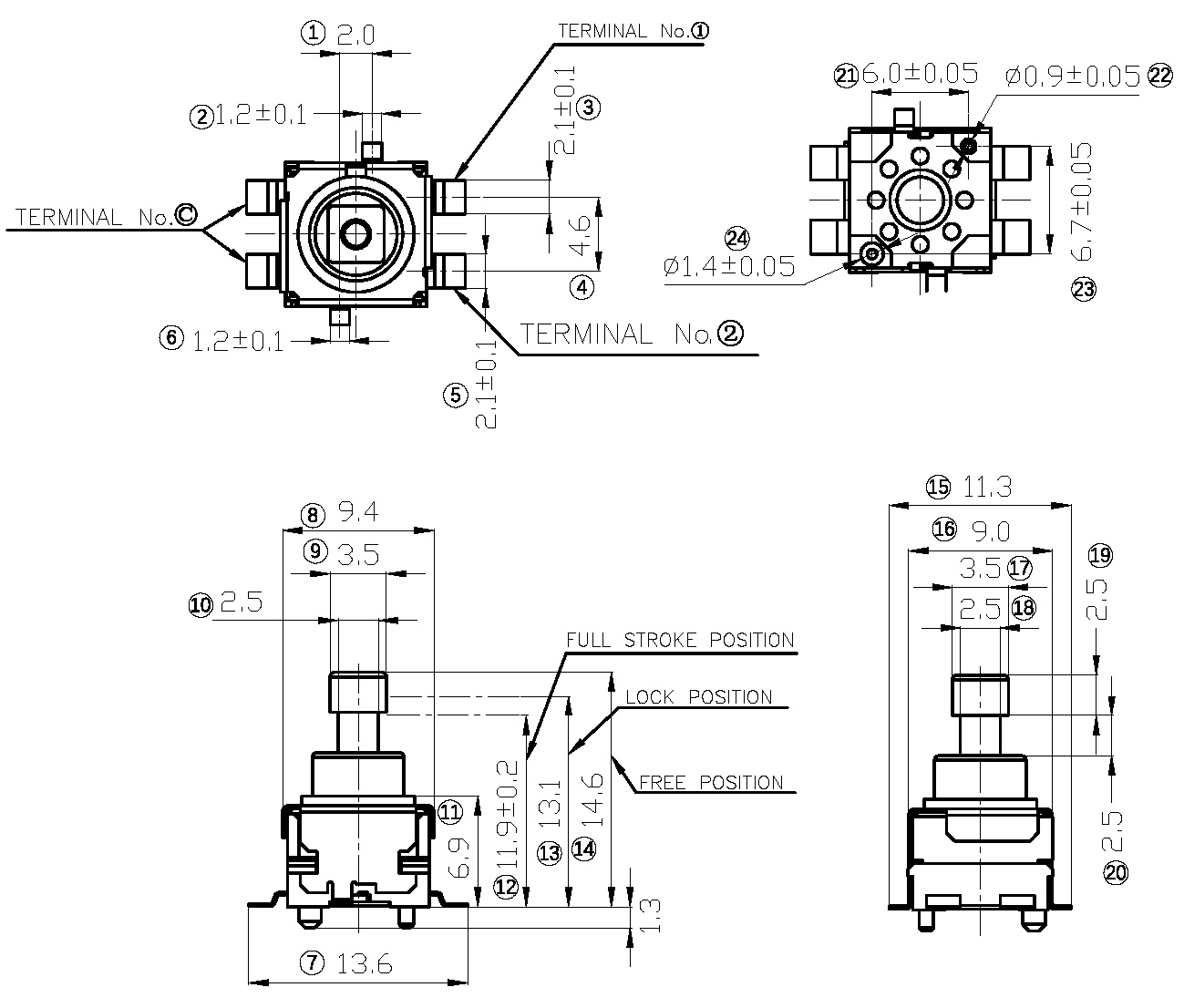

Proudcts | Dimensions | Circuit Diagram |

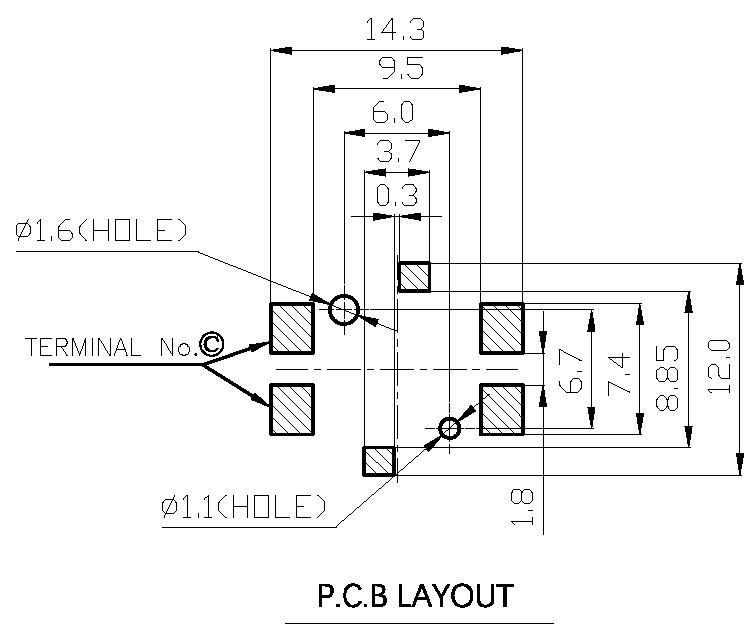

Pad Layout | ||
![]() |
![]() |
![]() |
